Stock tank supplying the casting line in the slip house

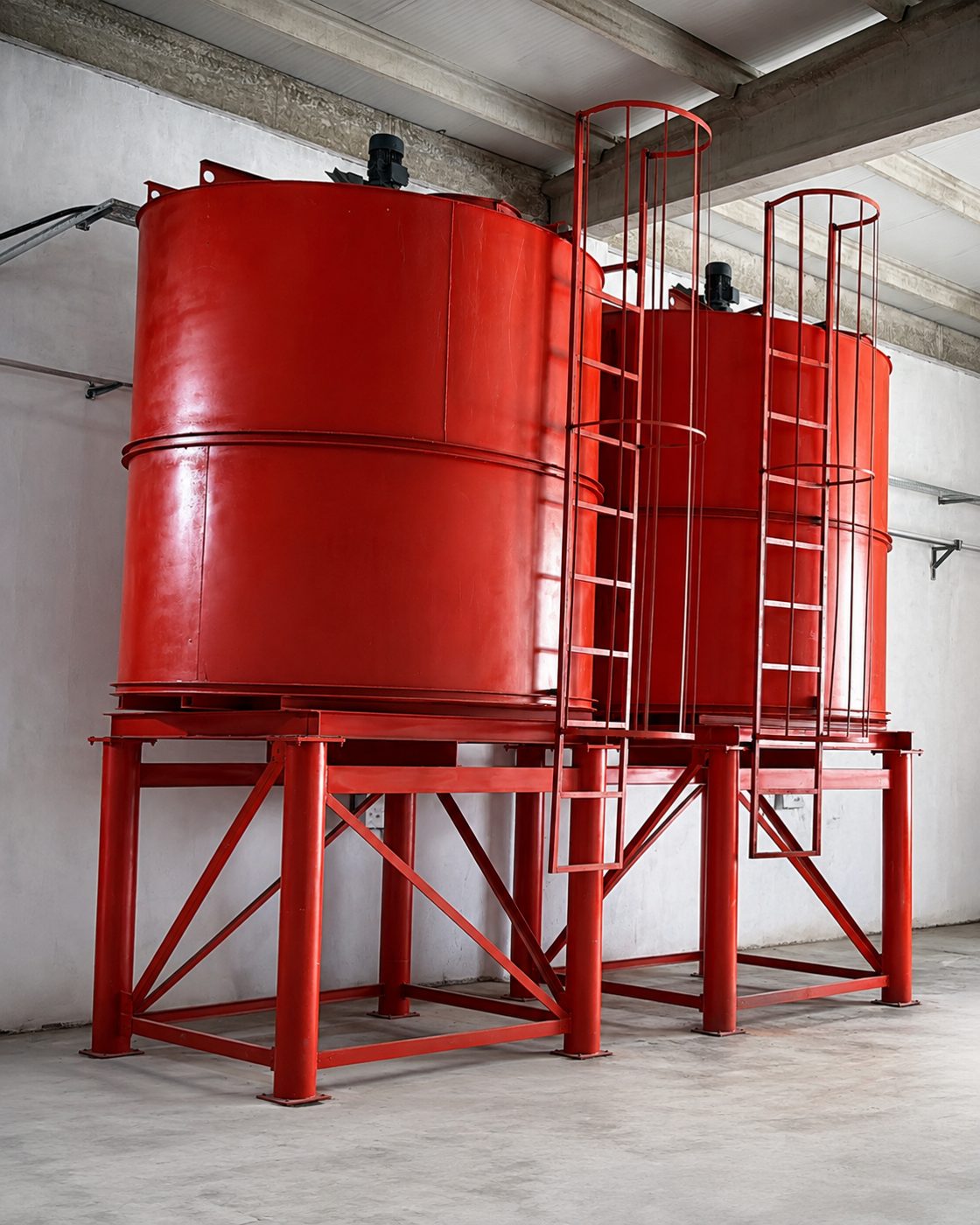

Agitated stock tanks on elevated steel platforms
Agitated storage tanks keep the prepared slip homogeneous, temperature-controlled and ready for the casting line for stable casting conditions around the clock.
Key Features
- Application
Slip storage, heating and supply with continuous agitation.
- Benefit
Homogeneous, temperature-controlled slip and a constant supply to the casting line
- Drive
Reductor (gear) drive system, slow-running agitator at 18–22 rpm.
- Configuration
Temperature range, pressure conditions and integration details are defined according to the product requirements and customer-specific production conditions.
Technical Data
| Parameter | 20 t | 30 t | 40 t | 50 t |
|---|---|---|---|---|
| Tank capacity | 20 t | 30 t | 40 t | 50 t |
| Agitator speed | 18–22 rpm | |||
| Drive | Reductor system | |||
