Traditional bench casting and the ANKA high pressure casting series dimensioned to your output. Select a product to view its details the list stays in place so you can compare systems quickly.
Low Pressure

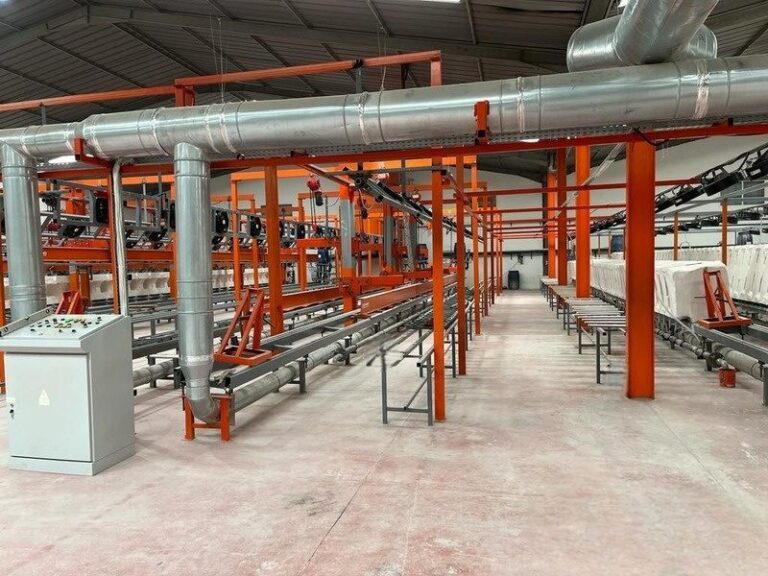

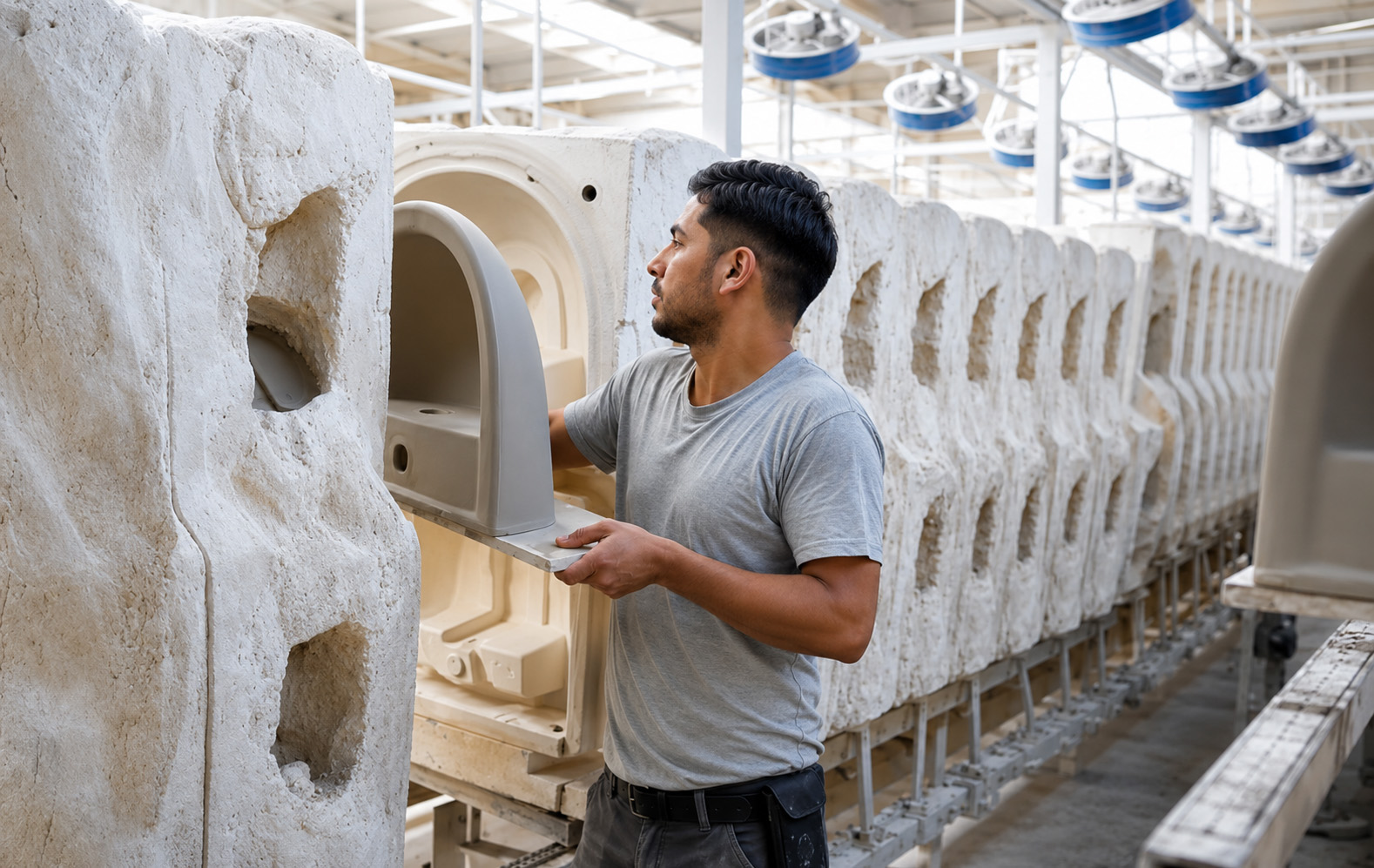

Low-pressure casting bench system is designed for the efficient and consistent production of sanitary ware such as wall-hung and back-to-wall closets.
HPC machines

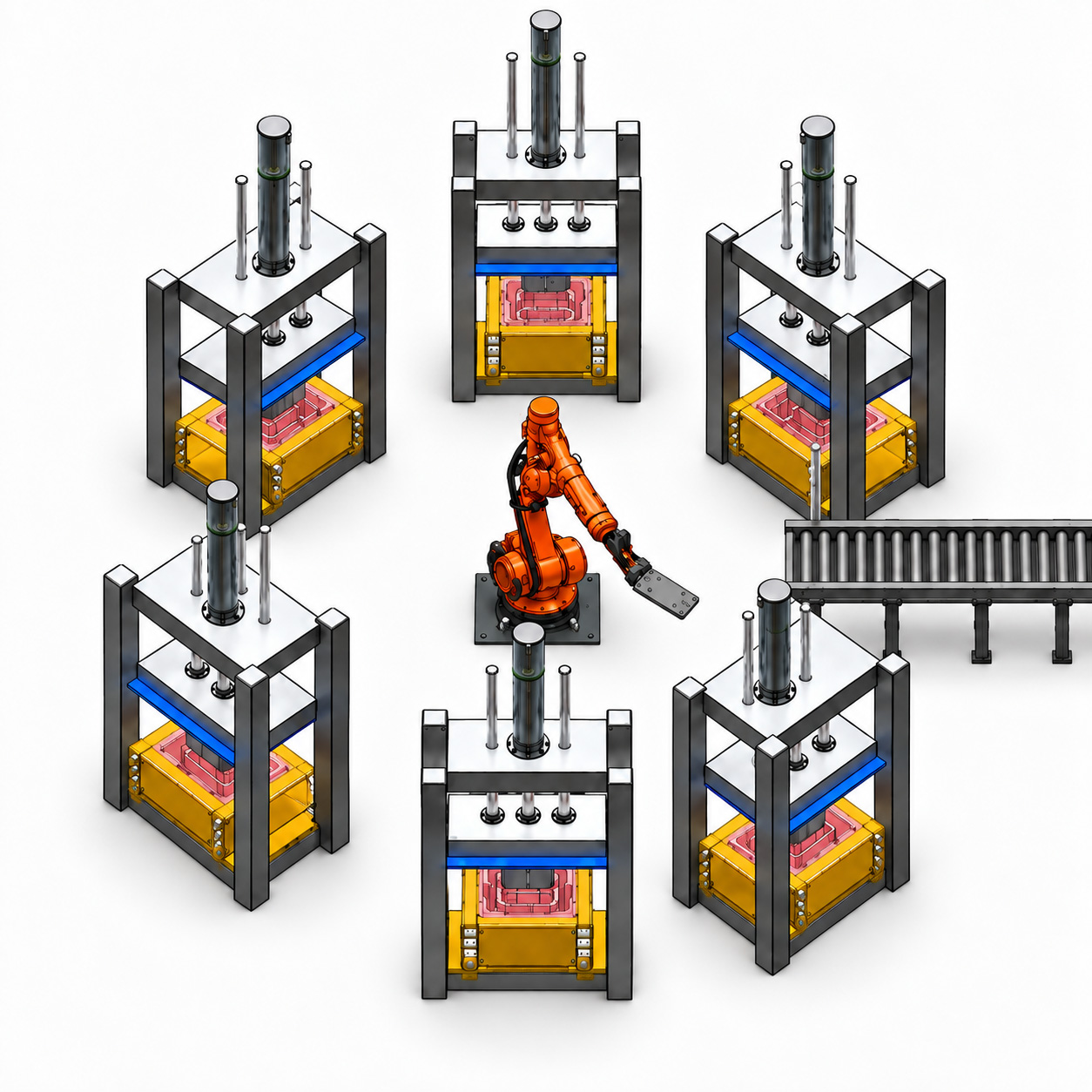

High Pressure Casting (HPC) machines are designed for industrial high-pressure slip casting of sanitary ceramic products washbasins, cisterns, lids, pedestals, wall-hung toilets, back-to-wall, rimless, rim-wash, tornado flush and one-piece WC products. From simple two-piece mould systems up to complex multi-piece mould sets with robotic handling and automated production flow.

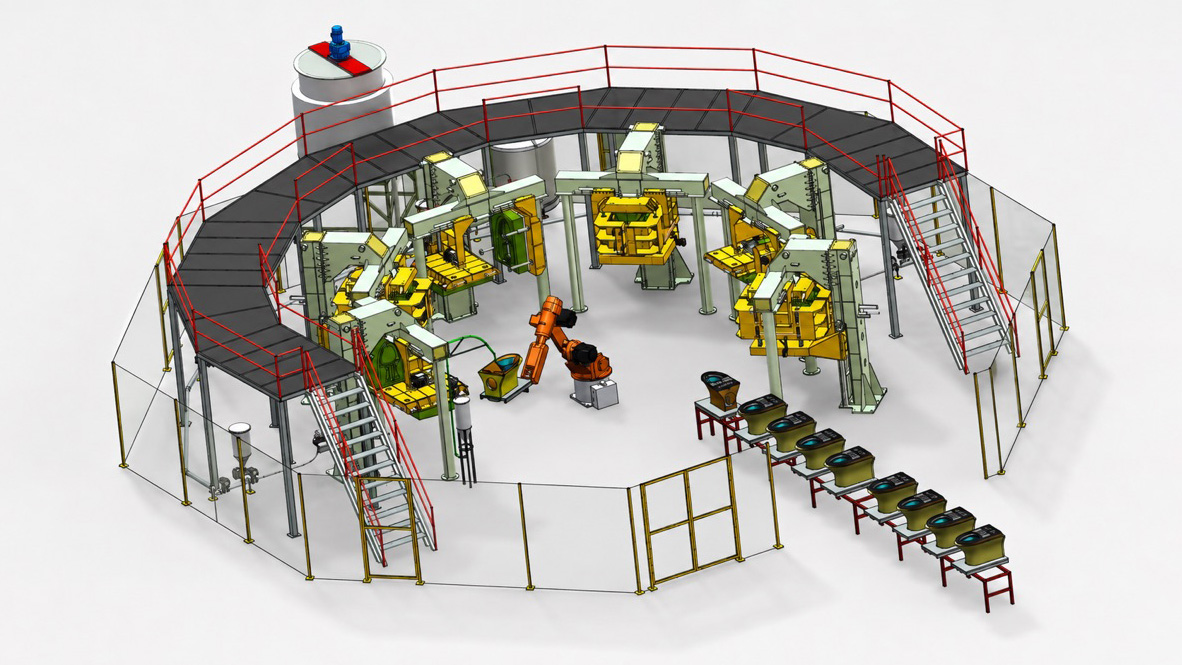

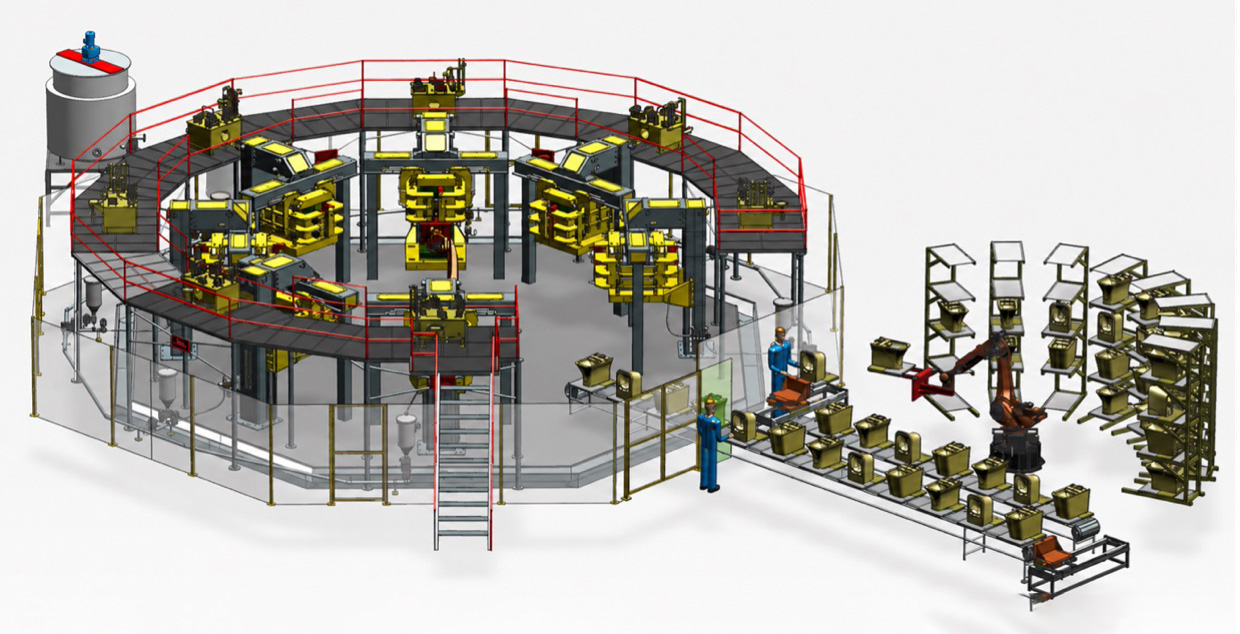

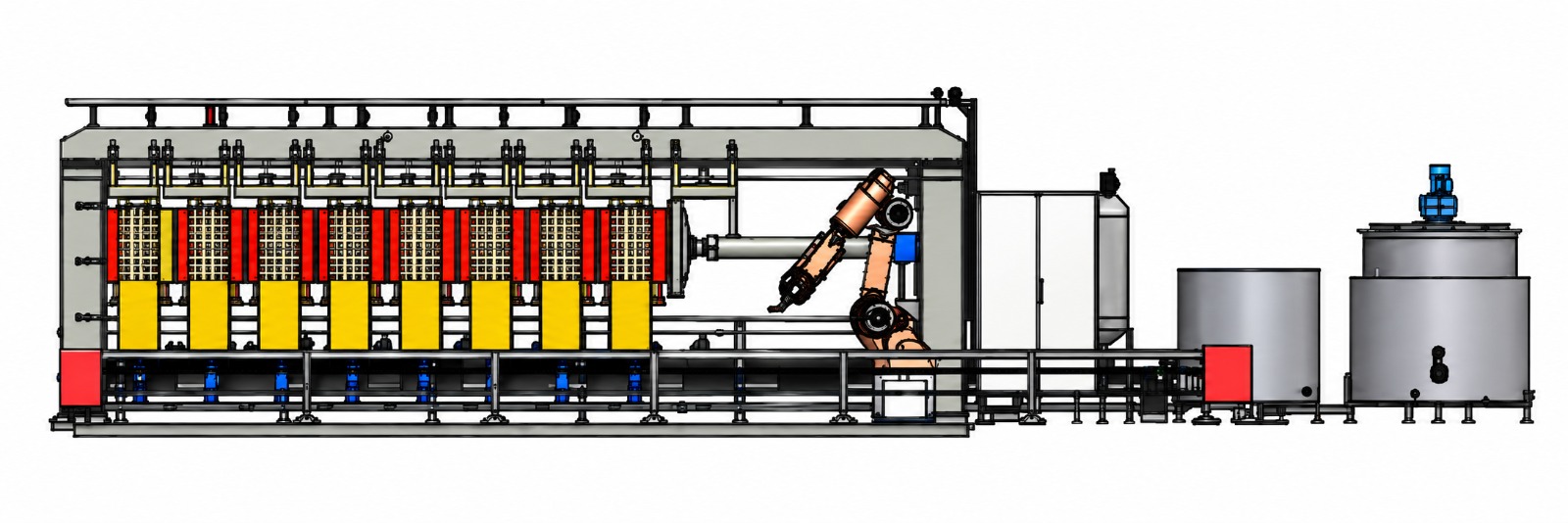

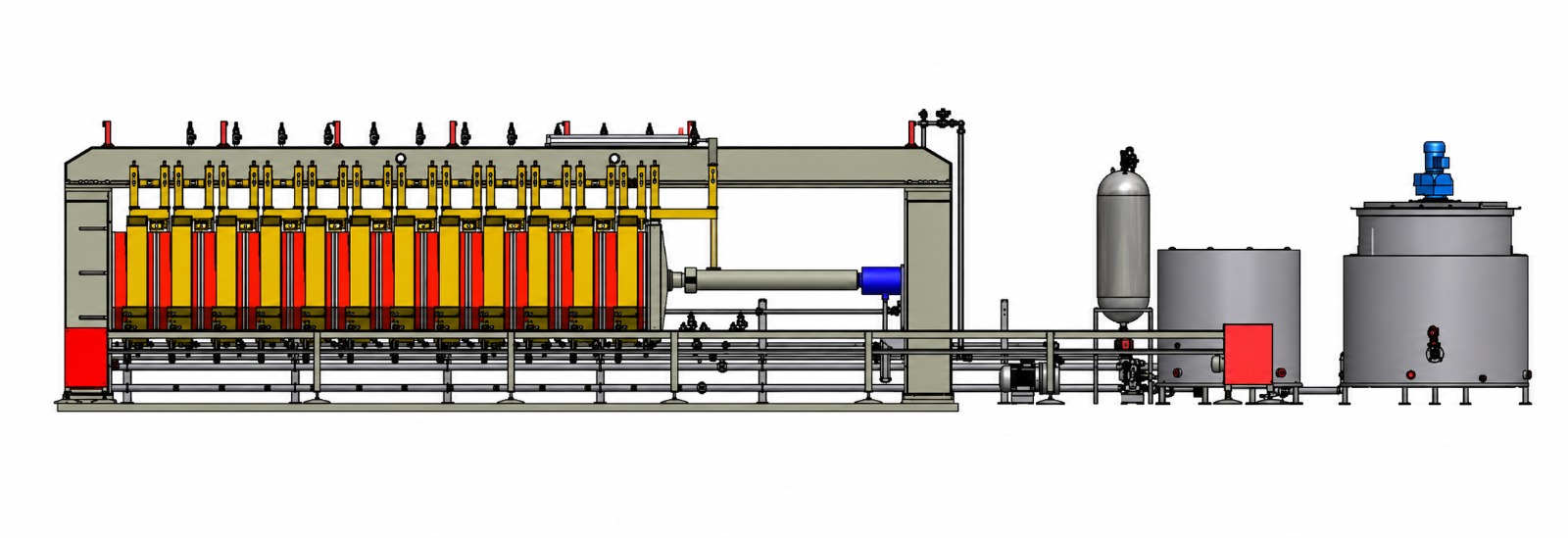

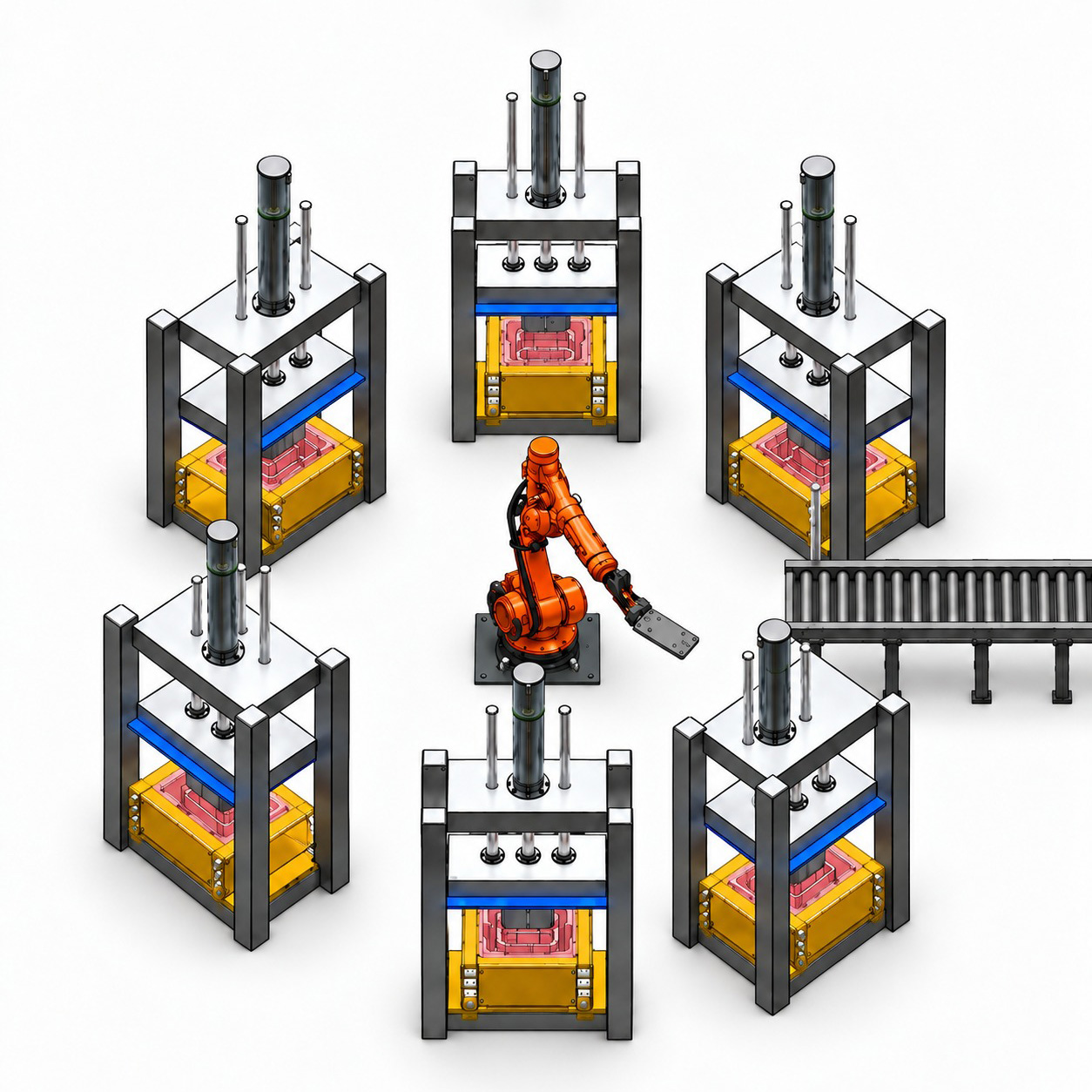

| ANKA 111 | ANKA 333 | ANKA 555 | ANKA 777 | ANKA 888 | ANKA 999 | |
|---|---|---|---|---|---|---|

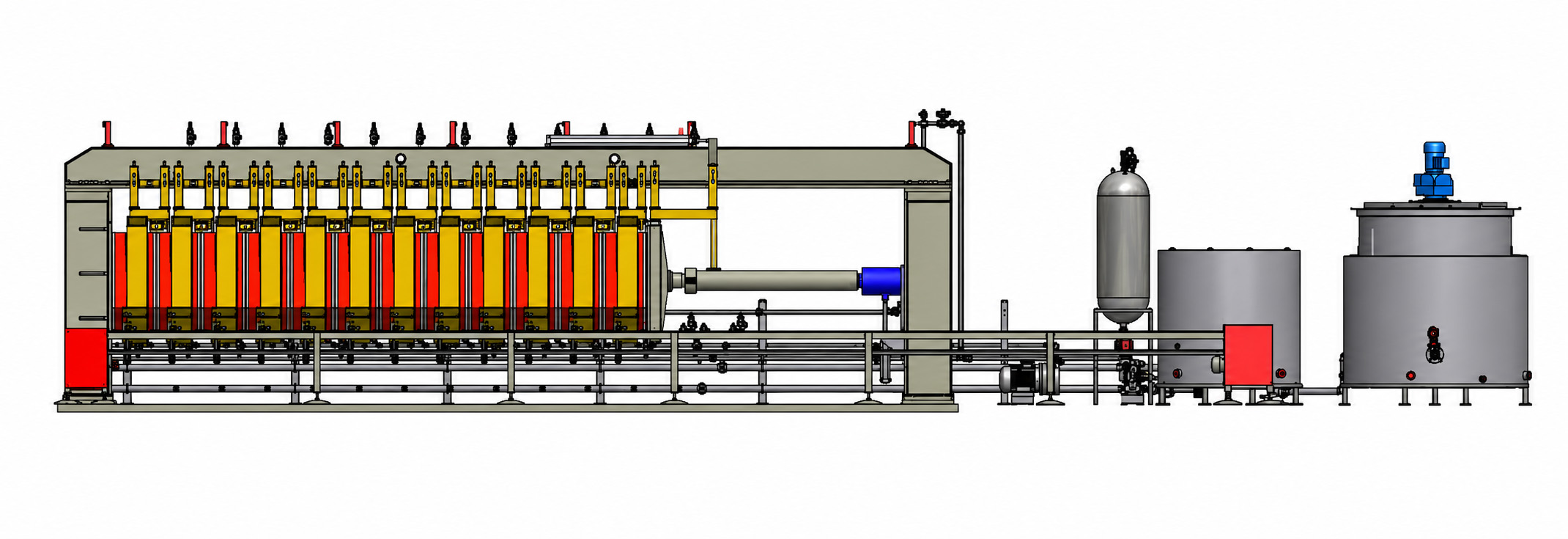

| Machine concept | HPC vertical machine | Battery HPC machine | Battery HPC machine | HPC vertical machine | HPC vertical machine | HPC vertical machine |

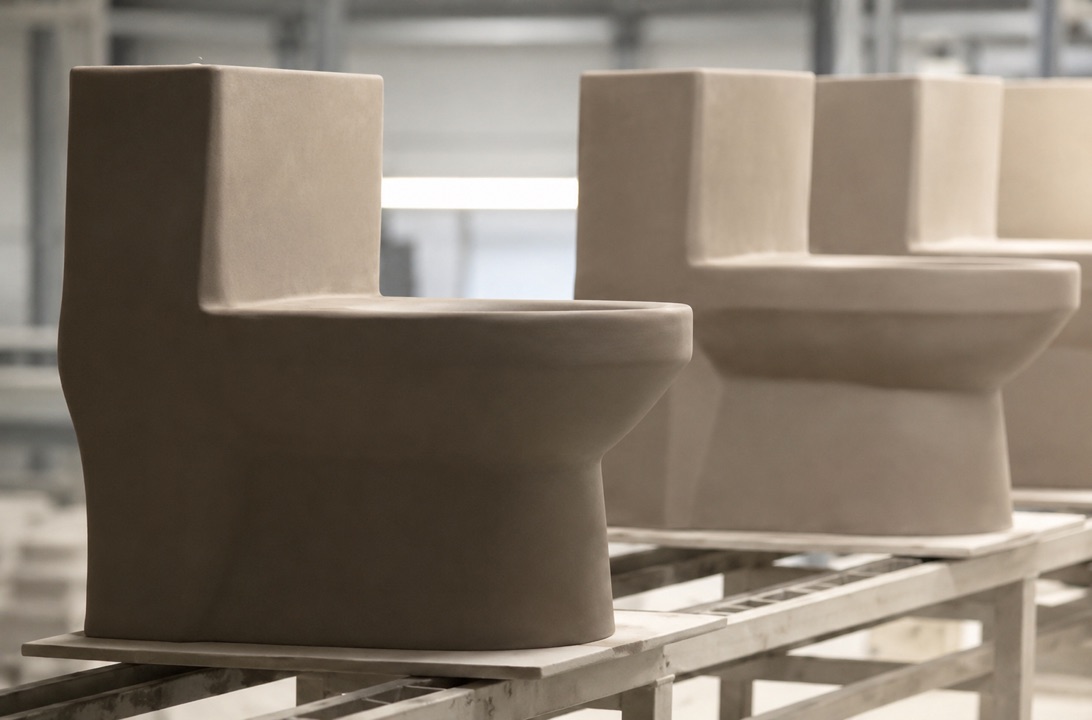

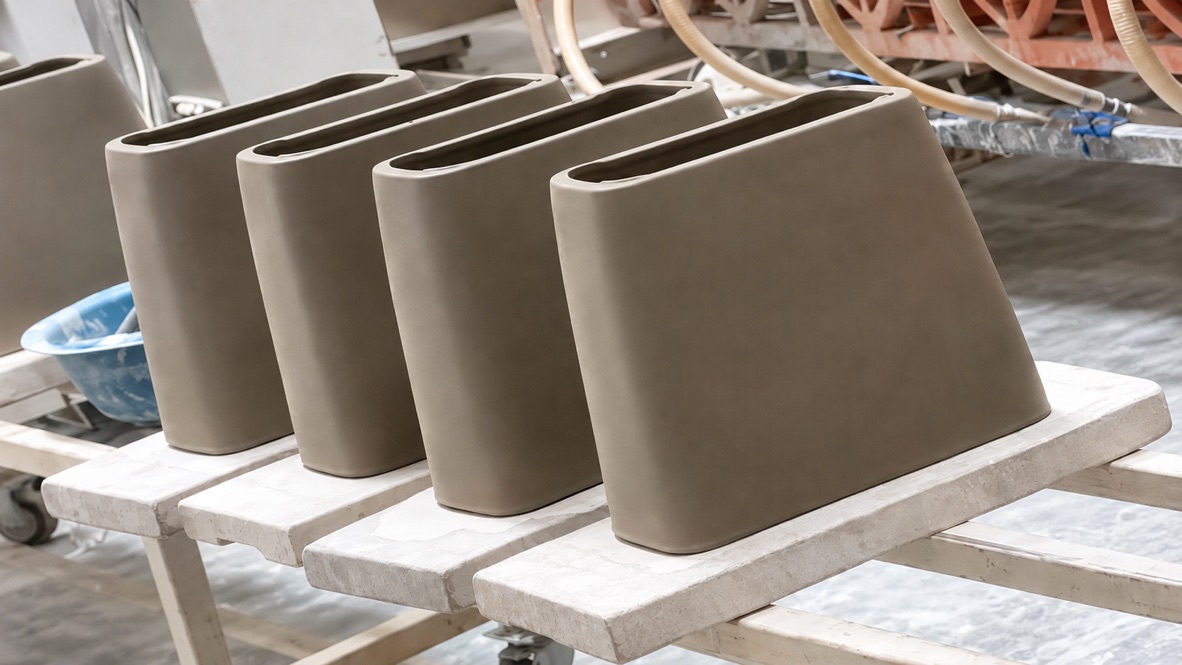

| Main product focus | Cisterns, washbasins, pedestals, American WB | Standard sanitaryware items: Cisterns, washbasins, pedestals, American WB, mix production | Wall-hung WC, bidet | Wall-hung WC, back to wall WC, Standard WC, Bidet | Wall-hung WC, back to wall WC, Standard WC, Bidet | One-piece WC, complex geometries |
| Mould technology | 2-parts porous resin moulds | 2-parts porous resin moulds | 3-parts porous resin moulds | 3/4/5-parts porous resin moulds | 3/4/5-parts porous resin moulds | 3/4/5-parts porous resin moulds |
| Mould configuration | Compact single-station | Up to 12 moulds | 8 station | 1 - 7 station | 3 Set (6 Station) | 4 station set |

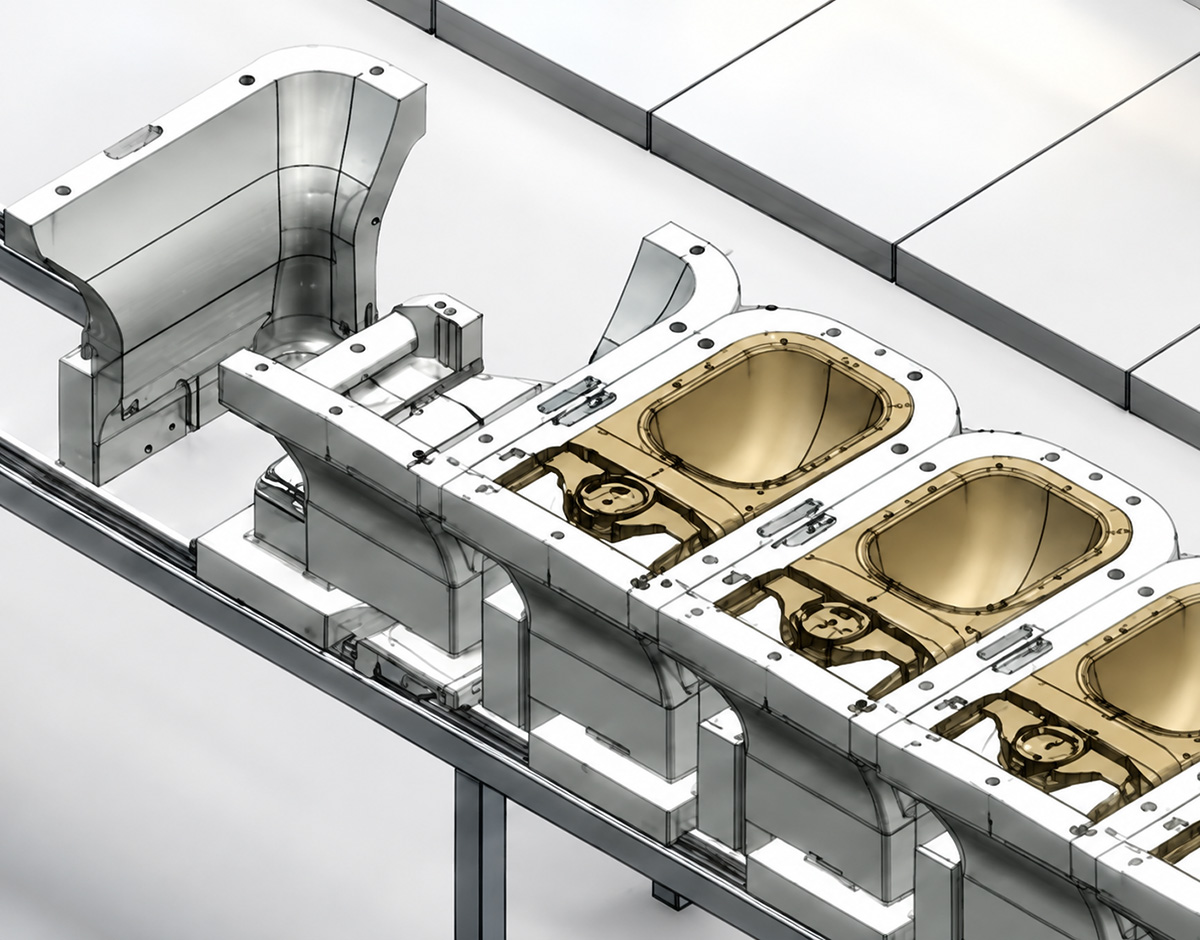

| Product removal / Demoulding & Automation | Robotic, manipulator | Robotic, manipulator & manual | Optional handling & transfer integration | Robotic handling & automation | Robotic handling & automation | Robotic handling & automation |
| Cycle time (start-to-start) | ≈ 18-30 min | ≈ 30 min | ≈ 45-50 min | ≈ 20-30 min | ≈ 20-30 min | ≈ 20-30 min |
| Max. Casting pressure | Up to 15 bar | Up to 15 bar | Up to 15 bar | Up to 15 bar | Up to 15 bar | Up to 15 bar |
| Max. Closing force | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
Discover casting systems engineered to meet the demands of modern sanitary ware manufacturing.
