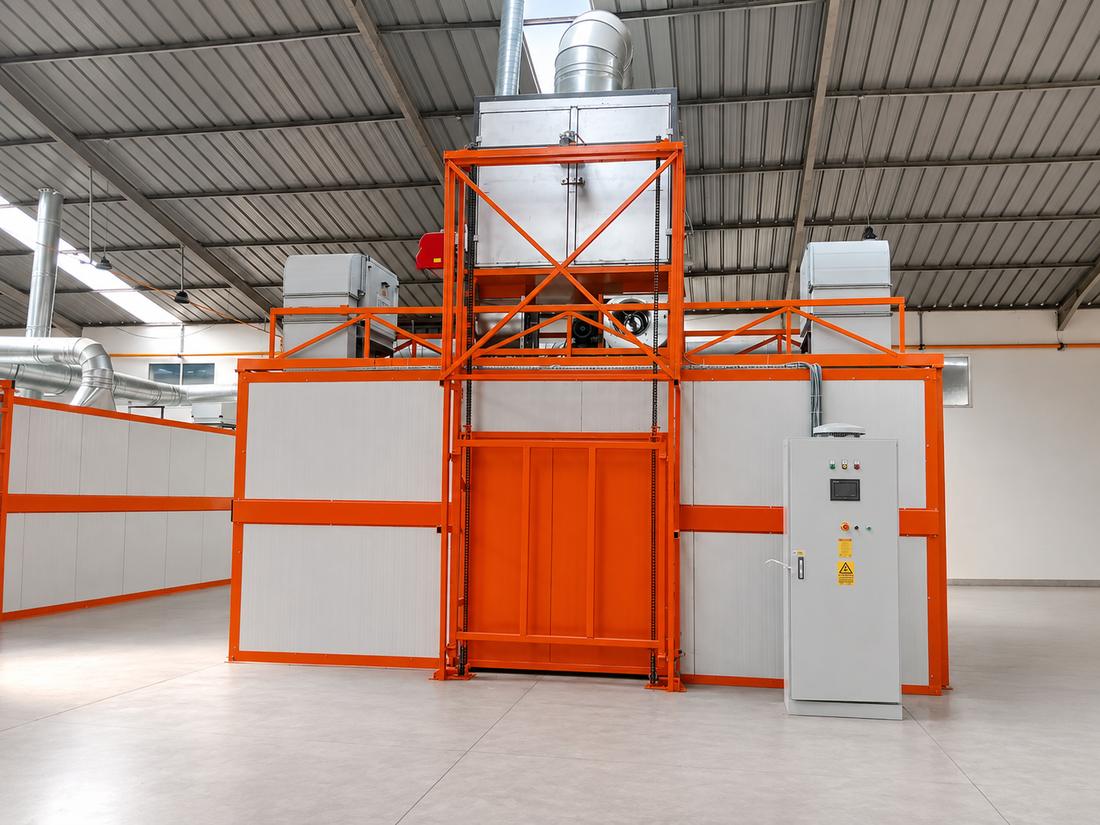

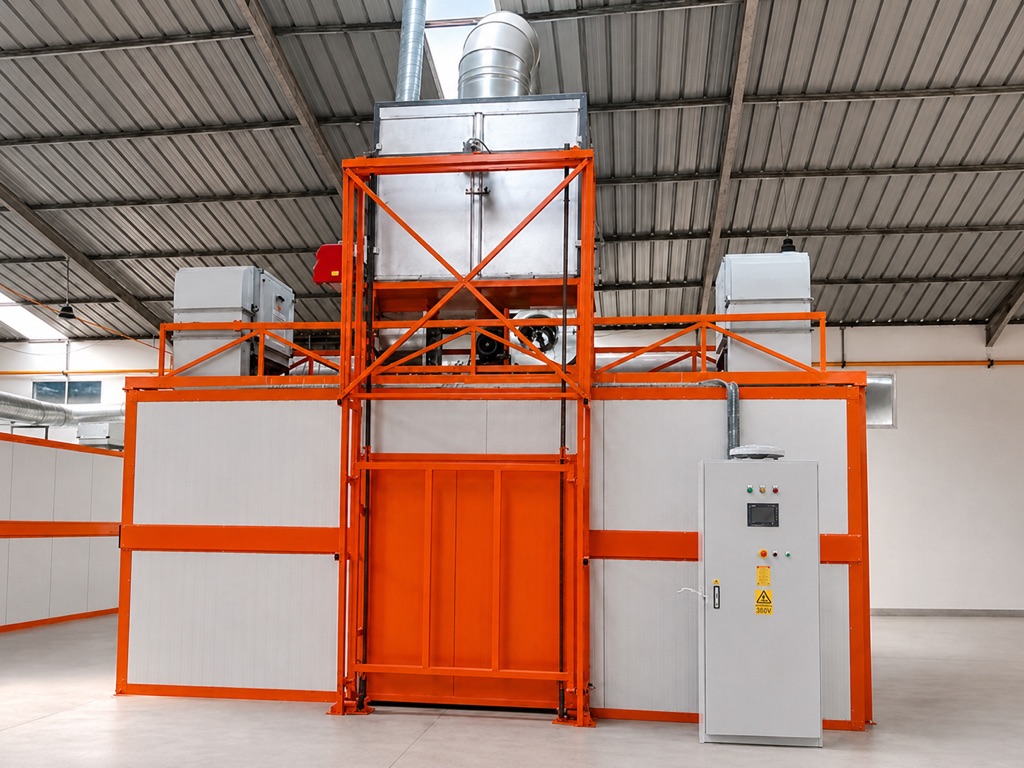

Green ware dryer with lift door and roof-mounted heating unit

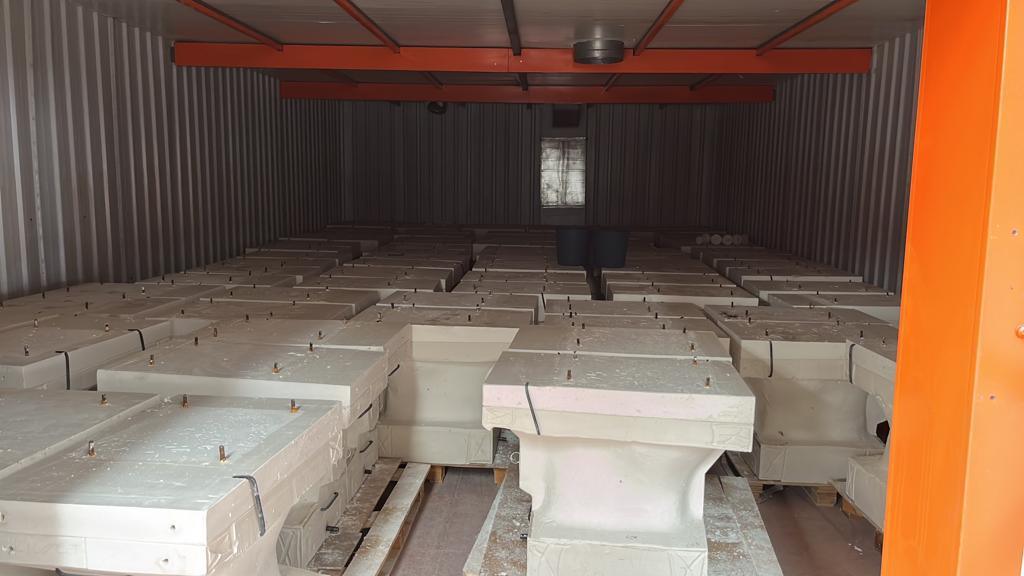

Dryer chamber loaded with fresh ware

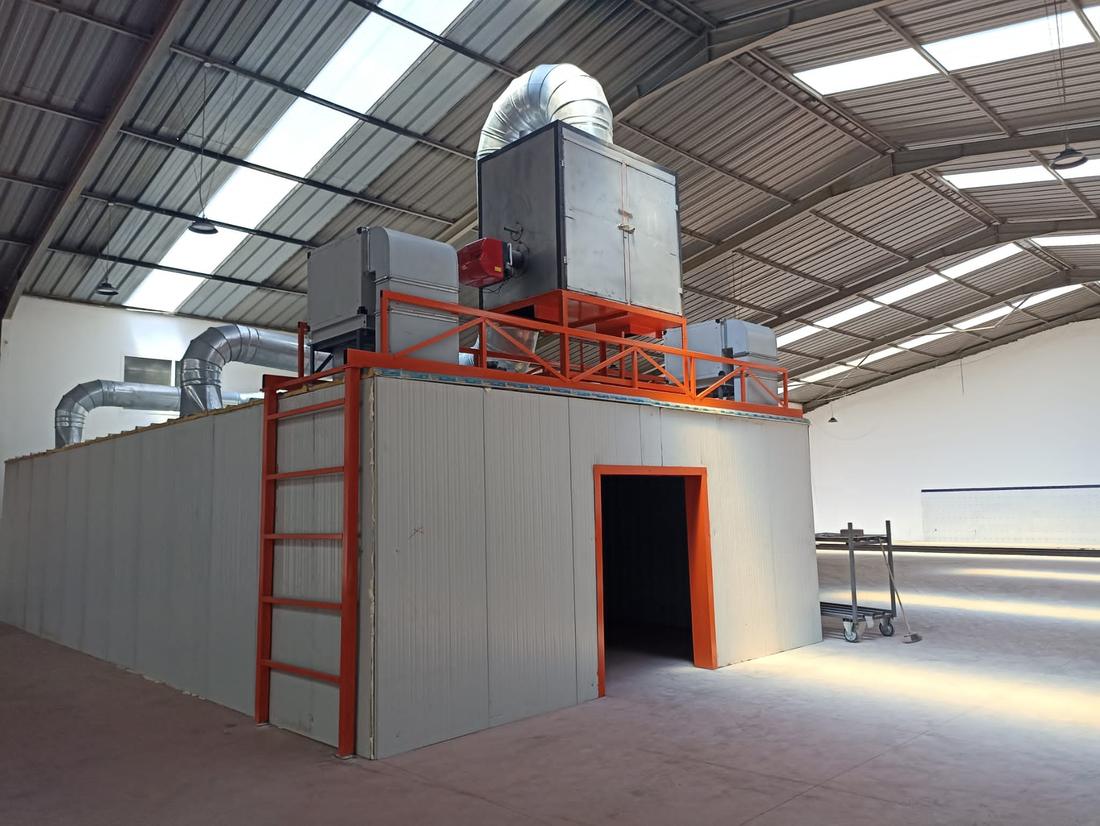

Pre-dryer installation on site
Chamber dryer for freshly cast green ware and for plaster working moulds. Controlled drying from room temperature up to 90 °C brings the pieces to the residual moisture required for glazing and firing, and returns moulds to the casting line faster — gentle on the ware: lower thermal stress means less crack risk and lower energy demand.
Heat and moisture are controlled automatically. A humidity and drying curve tuned to the product (rapid drying technology) shortens the drying time. Chambers from 30 to 100 m³ with 2.5 m clear height; kiln waste heat can be integrated — see Waste-Heat Recovery. For the complete system including automated ware transport, see Green Ware Drying & Handling.
Key characteristics
- One chamber concept for green ware and plaster moulds
- One chamber concept for green ware and plaster moulds
- Automatic heat and moisture control along a tuned drying curve rapid drying technology
- Kiln waste-heat integration cuts energy demand
Technical Data
| Parameter | Green Ware & Mould Dryer |
|---|---|
| Chamber volume | 30–100 m³ |
| Chamber height | 2.5 m |
| Temperature range | Room temperature to 90 °C |
| Control | Automatic temperature and humidity control |
| Drying time | Reduced by a tuned humidity / drying curve (rapid drying technology) |
| Charge | Green ware or plaster moulds |
