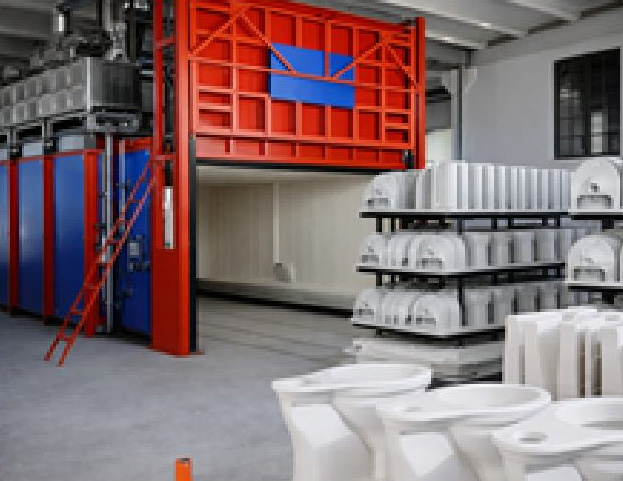

Shuttle kiln with loaded kiln cars

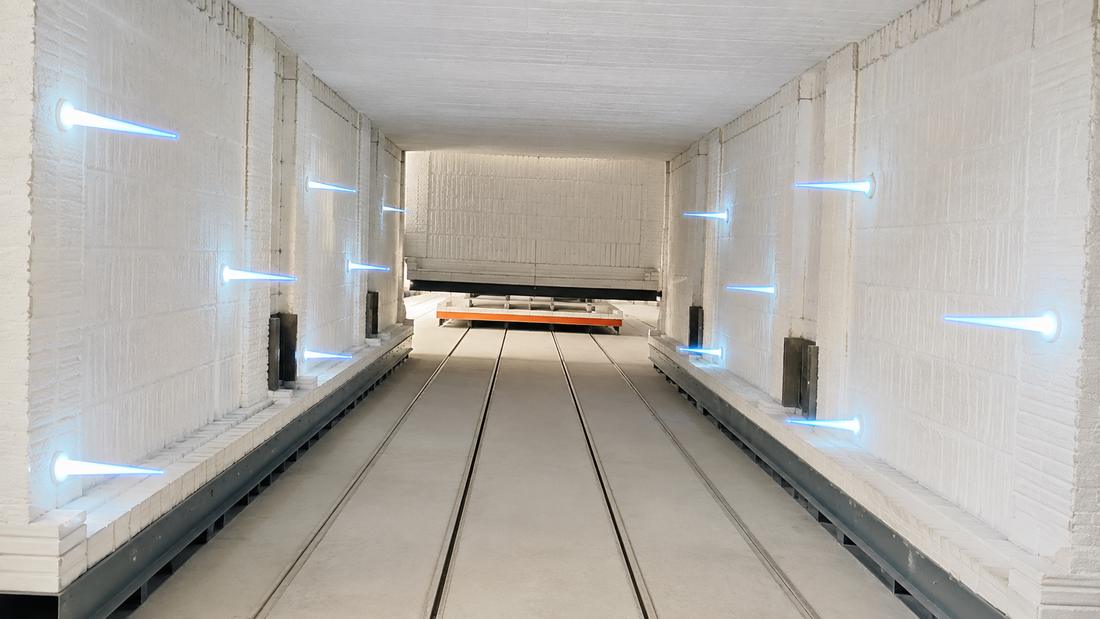

Interior with jet burners and kiln car track

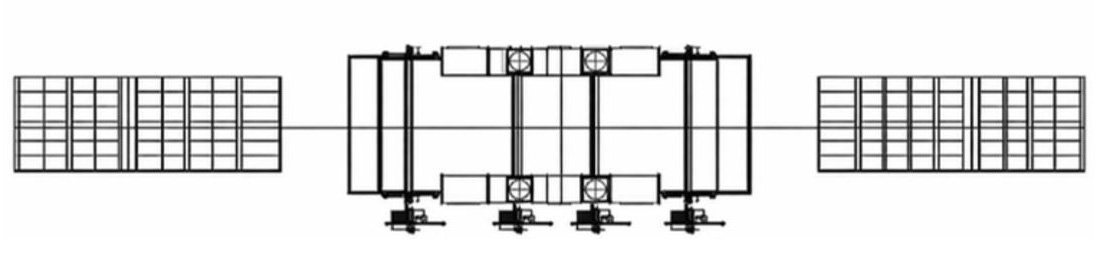

Shuttle kiln line — ceramic loading 1 · oven · ceramic loading 2
Reference configuration
- Approx. 90 m³ capacity, jet-burner combustion, wagon transfer.
- ~18 h per charge · ~750 pcs per charge
- Approx. 360,000 pcs/year — balanced with casting output
Technical Data
| Parameter | Shuttle Kiln |
|---|---|
| Max. temperature | 1250 °C |
| Kiln volume | 50 / 70 / 100 m³ — adapted to customer requirements |
| Stacking levels on kiln car | 1–3 |
| Combustion | Jet burners |
| Loading | Kiln cars, wagon transfer |
