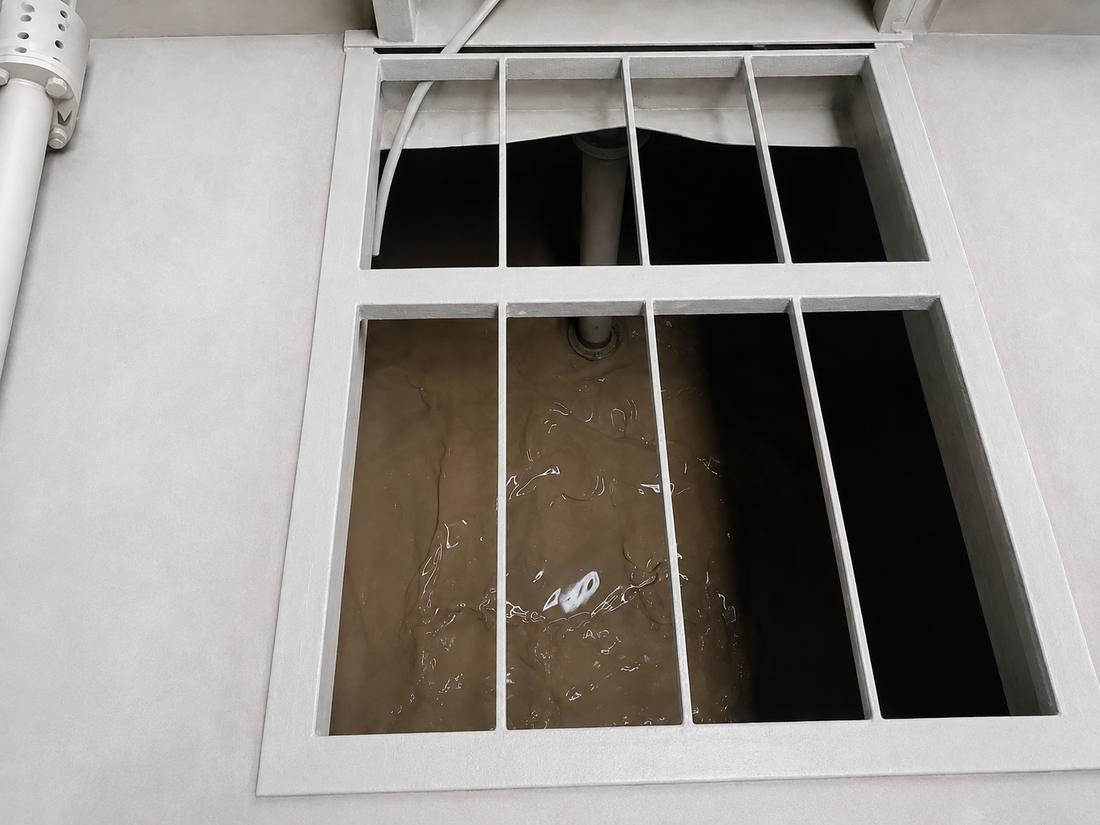

Underground mixer below floor level

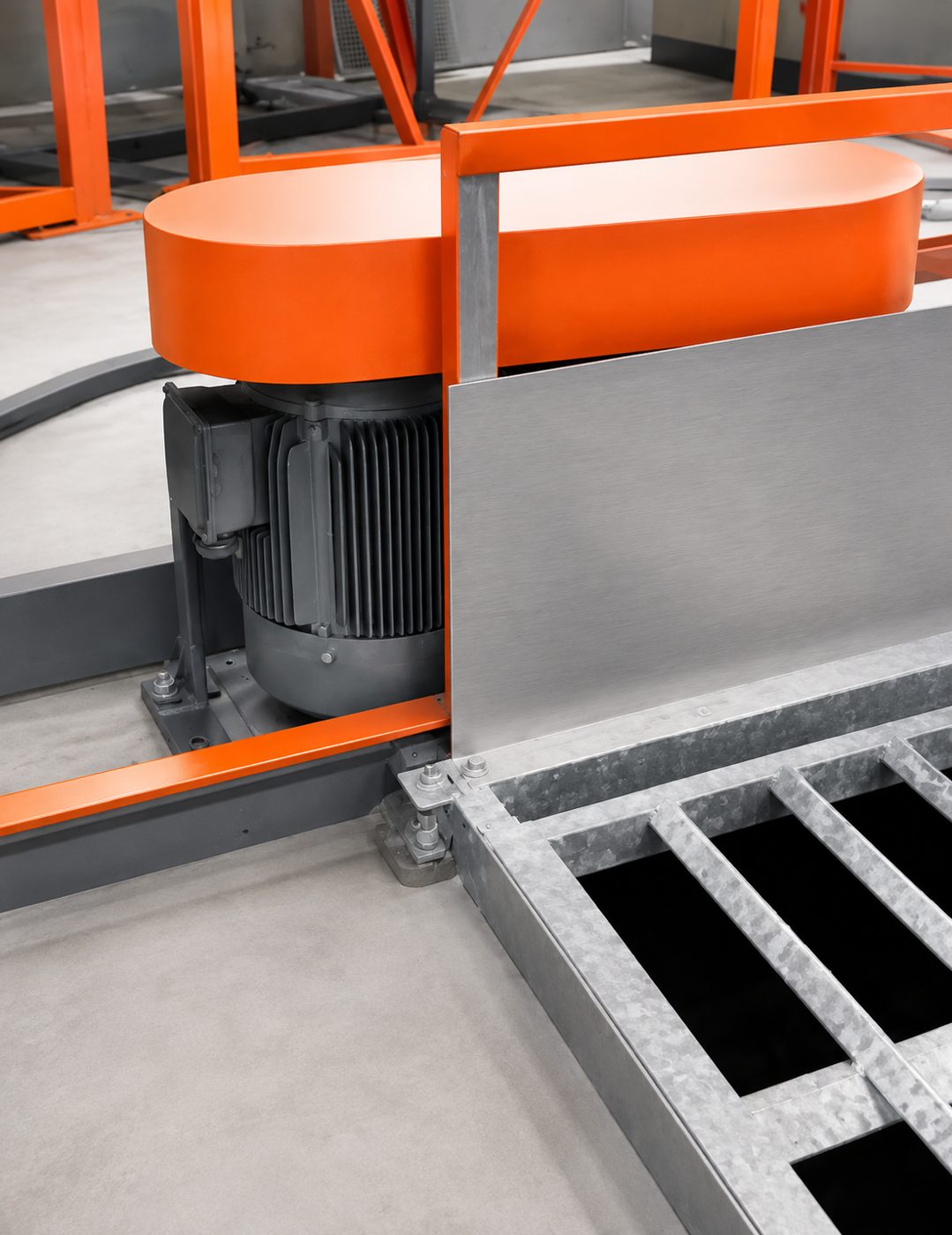

Drive unit with motor and reductor gearbox
Key Features
- Application
Slip preparation and homogenisation.
- Layout
Below floor level, space-saving installation.
- Drive
Reductor (gear) drive system for reliable heavy-duty operation.
- Sizes
Four standard volumes from 20 to 50 m³
Technical Data
| Parameter | 20 m³ | 30 m³ | 40 m³ | 50 m³ |
|---|---|---|---|---|
| Mixer volume | 20 m³ | 30 m³ | 40 m³ | 50 m³ |
| Motor power | 18 kW | 22.5 kW | 37 kW | 45 kW |
| Speed | 250–350 rpm | 350–450 rpm | 350–450 rpm | 350–450 rpm |
| Drive | Reductor system | |||
