Freshly cast WC bodies on the casting bench

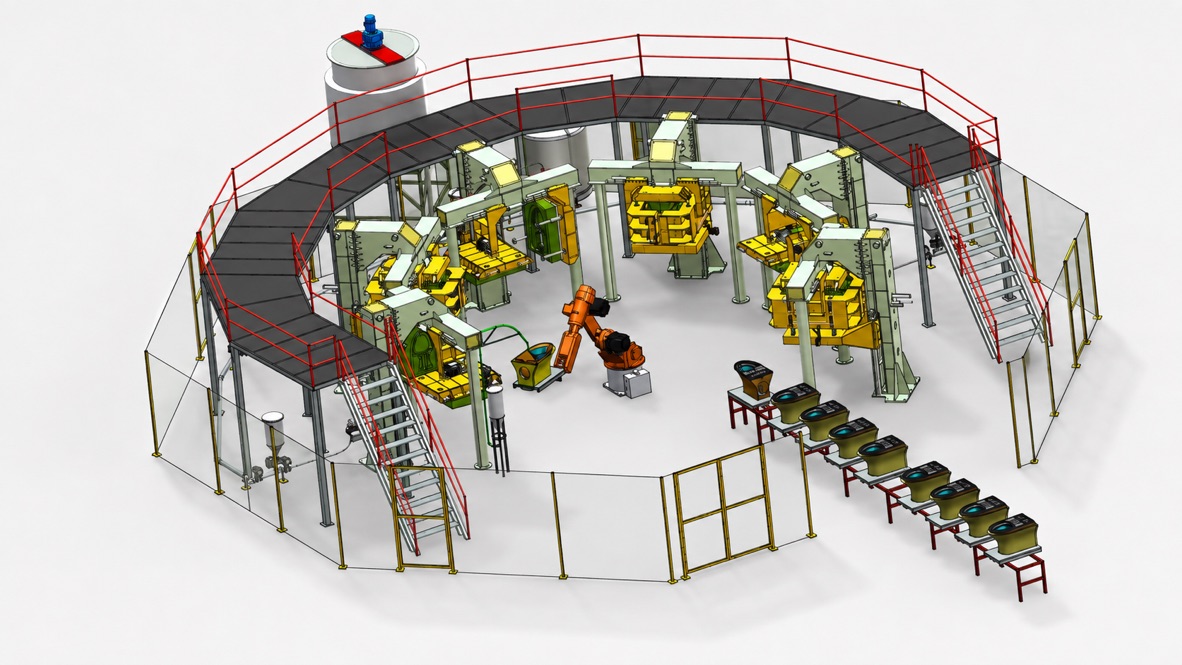

The ANKA888 is a fully automated high-pressure casting system designed for the efficient production of advanced WC designs, including products with complex water rim geometries and Tornado flushing systems. With a maximum of 6 stations, 3 products are produced at the same time.
The system enables automated casting, demoulding, handling and product transfer throughout the complete production process. No manual production steps are required, ensuring consistent process control, reduced operator dependency and highly repeatable production conditions.
The ANKA888 is particularly suitable for WC designs requiring precise formation of the water rim and flushing channels, providing increased flexibility for modern rim and Tornado flush concepts.
Under common production conditions, the system can achieve a gross production capacity of up to 4,493 WC products per month. The complete ANKA888 production system can be installed within a compact production area of maximum 14 × 14 m, depending on the selected layout and peripheral equipment.

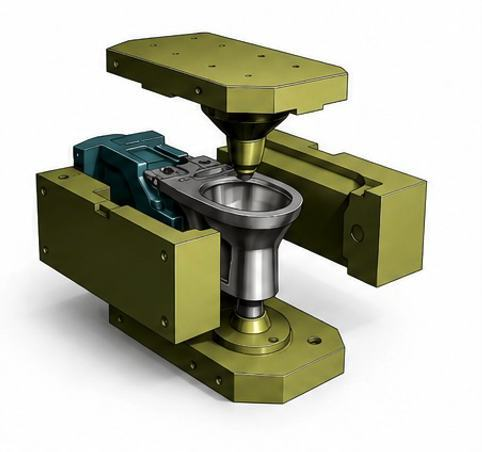

Up to 5 porous resin mould parts can be used

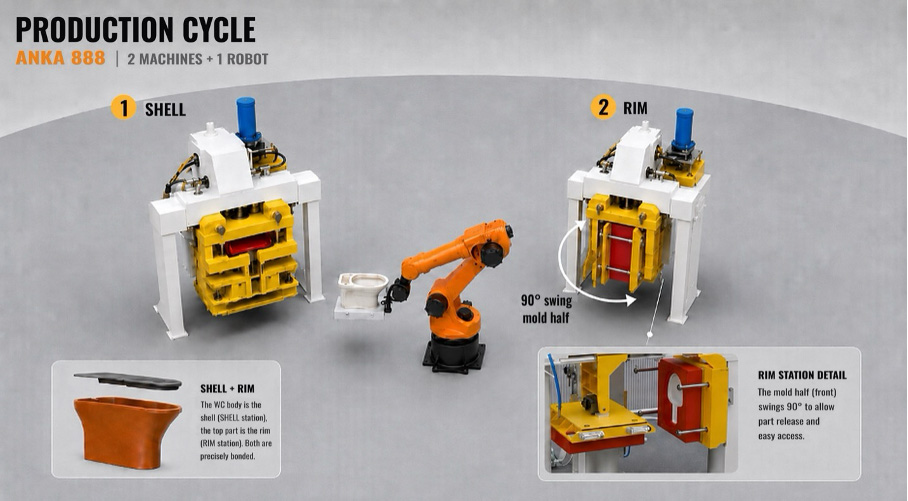

Production cycle — 2 machines + 1 robot (shell and rim station)
Key Features
- Machine type
High-capacity HPC machine.
- Mould system
Castimo porous resin moulds.
- Typical use
Industrial-scale production.
Technical Data
| Parameter | ANKA 888 |
|---|---|
| Machine concept | HPC vertical machine |
| Main product focus | Wall-hung WC, back-to-wall WC, standard WC, bidet |
| Mould technology | 3/4/5-parts porous resin moulds |
| Mould configuration | Max. 3 sets (6 stations) |
| Product removal / demoulding & handling | Robotic handling & automation |
| Cycle time (start-to-start) | ≈ 20–30 min |
| Max. casting pressure | Up to 15 bar |
| Max. closing force | 200 bar |
- Indicative values for WC production · Operating time: 350 days/yr · 24 h/day (3 shifts) · 95 % productivity.
